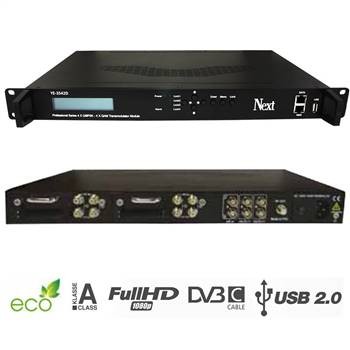

YE-3343D 8X4 QAM TRANSMODULATOR

Outline

YE-3343D is a high performance and cost-effective mux-scrambling QAM modulator. It

has multiple input ports optional. After multiplexing, scrambling and QAM modulating

process, then it gives 4 RF output. To meet customers' various requirements, this

device is also equipped with IP port to output 4 MPTS over UDP. Its pluggable

structure design greatly facilitates the change of modules (demodulator) as needed.

The four CAMs/CIs (Optional) accompanied and BISS modules can descramble the

programs input from 4 Tuner inputs. Its pluggable structure design greatly facilitates

the change of modules (demodulator) as needed. YE-3343D is also characterized with

high integrated level, high performance and low cost. This is very adaptable to newly

generation CATV broadcasting system.





Key Features • Multiple Input ports optional:

8 DVB-C/S/S2 FTA Tuner + 6 ASI input ports (Version 1)

4 DVB-C/S/S2 FTA Tuner + 6 ASI + 2 IP input port (Version 2)

8 DVB-C/S/S2 FTA Tuner + 2 ASI + 2 IP input port (Version 3)

4 DVB-C/S/S2 Tuner with CAM+6 ASI input ports (Version 4)

• Support 4 channels multiplexing+4 channels scrambling+4 channels QAM modulating

• Fully support DVB-C (EN300 429) and ITU-T J.83A/B/C

• Fully support DVB general scrambling system description ETR289, simulcrypt standard

ETSI 101 197 and ETSI 103 197

• Support accurate PCR adjusting

• Support PSI/SI editing and inserting

• Excellent RF output performance index, MER>40db

• Support 4*MPTS output over UDP

• 4 CAM decrypt multiple programs from 4 Tuner input (Optional)

• Support BISS descrambling

• Support LCD display and keyboard

• Support Web management, Updates via web and USB

Specifications









Input

8 DVB-C/S/S2 FTA Tuner + 6 ASI input  ------------------------- Version 1

4 DVB-C/S/S2 FTA Tuner + 6 ASI + 2 IP input  ----------------- Version 2 2 IP(SPTS/MPTS) input over UDP, RJ45, 1000M, Unicast/Multicast 8 DVB-C/S/S2 FTA Tuner + 2 ASI + 2 IP input  ------------------- Version 3 2 IP(SPTS/MPTS) input over UDP, RJ45, 1000M, Unicast/Multicast 4 DVB-C/S/S2 Tuner with CAM + 6 ASI  ------------------------------ Version 4





Tuner      Section

DVB-C Standard J.83A(DVB-C), J.83B, J.83C

Input Frequency 30MHz-1000Mhz

Constellation 16/32/64/128/256 QAM

DVB-S Input Frequency 950-2150MHz

Symbol rate 2-45Msps

Signal Strength -65—25dBm





  FEC Demodulation 1/2, 2/3, 3/4, 5/6, 7/8 QPSK

DVB-S2 Input Frequency 950-2150MHz Symbol rate QPSK 1~45Mbauds 8PSK 2~30Mbauds Code rate 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10

Demodulation Mode QPSK, 8PSK

Multiplexing Maximum PID Remapping

128per input channel

Function PID remapping (automatically or manually) Accurate PCR adjusting Generate PSI/SI table automatically Scrambling Maximum simulcrypt CA 4 Standard ETSI 101 197, ETSI 103 197 Connection Local/remote connection Modulation QAM Channel 4 Standard EN300 429/ITU-T J.83A/B/C MER >40db RF frequency 30~999MHz, 1KHz step RF output level -20~0dbm(87~ 107 db|V),0.1db step Symbol Rate 5.0Msps~9.0Msps, 1ksps stepping Constellation 16/32/64/128/256QAM  J.83A J.83B J.83C Constellation 16/32/64/128/256QAM 64/256 QAM 64/256 QAM Bandwidth 8M 6M 6M System Local interface LCD + control buttons Remote management Web NMS Stream Out 4*MPTS over UDP out (RJ45, 1000M, Unicast/Multicast) Language English and Chinese Software Upgrading Web and USB General Dimension (W*D*H) 482mmx300mmx44.5mm Weight 3.7kg Temperature 0~45 C (Operation) ; -20~80C (Storage) Power AC 100V±1050/60Hz; AC 220V±10%, 50/60HZ

Consumption 25W
