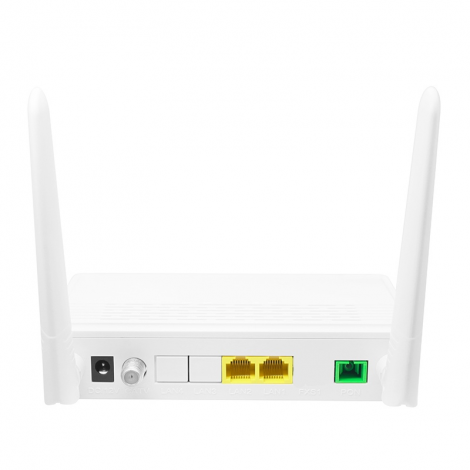

DSXO-1002CW GPON & GEPON ONU

Overview

- DSXO-1002CW is designed as HGU (Home Gateway Unit) in deferent FTTH solutions by DigiSAT,                                                                                           The carrier class FTTH application provides data service access.

- DSXO-1002CW is based on mature and stable, cost-effective XPON technology. It can switch automatically with                                                             EPON and GPON when it access to the EPON OLT or GPON OLT.

- DSXO-1002CW adopts high reliability, easy management, configuration flexibility and good quality of service (QoS)                                                         guarantees to meet the technical performance of the module of GPON Standard of ITU-TG 984.X



-- Functional Feature

- Support EPON/GPON mode and switch mode automatically

- Support EPON/GPON mode and switch mode automatically

- Support ONU auto-discovery/Link detection/remote upgrade of software

- WAN connections support Route and Bridge mode

- Route mode supports PPPoE – DHCP - Static IP

- Support QoS and DBA

- Support port Isolation and port vlan configuration

- Support Firewall function and IGMP snooping multicast feature

- Support LAN IP and DHCP Server configuration

- Support Port Forwarding and Loop-Detect

- Support TR069 remote configuration and maintenance

- Specialized design for system breakdown prevention to maintain stable system



-- Application

- Typical Solution : FTTO (Office) - FTTB (Building) – FTTH (Home)

- Typical Business : INTERNE IPTV, IP Camera, WiFi, Voip, CATV
