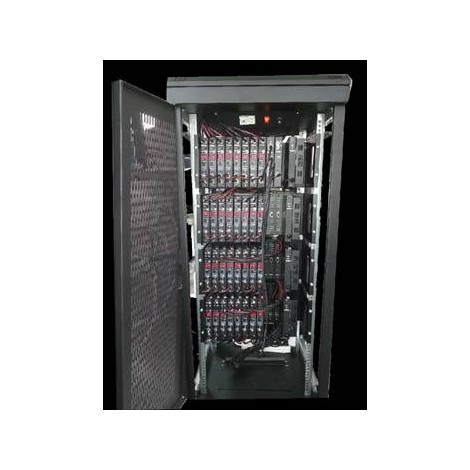

CS-5000 19" KASET TİP 40 KANAL TYB SET

TECHNICAL SPECIFICATIONS

SINGLE SIDE BAND:

Model CS-5000 ES GOUP MODULATOR

Modulation : Single Side Band

Modulator Quantity : Max. 8 Units

TV Standard : PAL B/G

Operation Band : Full TV band 48-862 Mhz

AGILE SYSTEM (Channel filter not required.)

Image / Audio Carrier Ratio : 13 dB

C / N ratio : > 60 dB Output

Channel Selection : Microprocessor controlled

PLL Channel display : 2 step LED display

Output level adjustment : - 20 dB

Equalizer Level Adjustment : -20 dB

Combined output level : 124 dBuV (with Power amplifier) (DIN45004B)

Combined output level : 105 dBuV (with Power amplifier)

40 channel -5 dB curve Audio input : 500 mV (RMS)

10 K Video input (Composite) : 1 Vpp 75 Ohm

QPSK Demodulator Operating Frequency : 950-2150 MHz

Symbol Frequency : 45 MHz MCU Unit : ALI 3329 LNB Voltage : 13 - 18V

Filtered Combiner: Modulator

Group Input : 4 units

1. Input: LPF S04-C07

2. Input: BPF C10-S17

3. Input: BPF S20-S29

4. Input: HPF S32-S41

Combiner Transition Loss -8 dB

CONNECTION COMPONENTS LNB Connector : F Type female connector

RF Connector : F Type female connector

Power Supply SMPS Max.

Operating Temperature -5...+50 C

Dimensions : 470x200x125
